100% BALLAST REGULATORS MATISA

IMAGINED BY YOURSELF AND CONSTRUCTED BY US

For the new generation of Ballast Regulators, we have fulfilled your wishes by optimizing their performance in six key areas:
power, quality, comfort, reliability, drivability and economics

It was a major challenge but we did it. And in order to meet your requirements, our 3 machine types can be equipped with a wide range of innovations. You liked our ballast regulators, you will love our New ones!

Our philosophy: MORE with LESS

When introducing innovations, the target of our engineers is to allow you to obtain a better result in less time, with less fuel and by optimizing the workforce.
Discover how MATISA brought crucial advantages in terms of savings and profitability in order to significantly improve your daily efficiency.

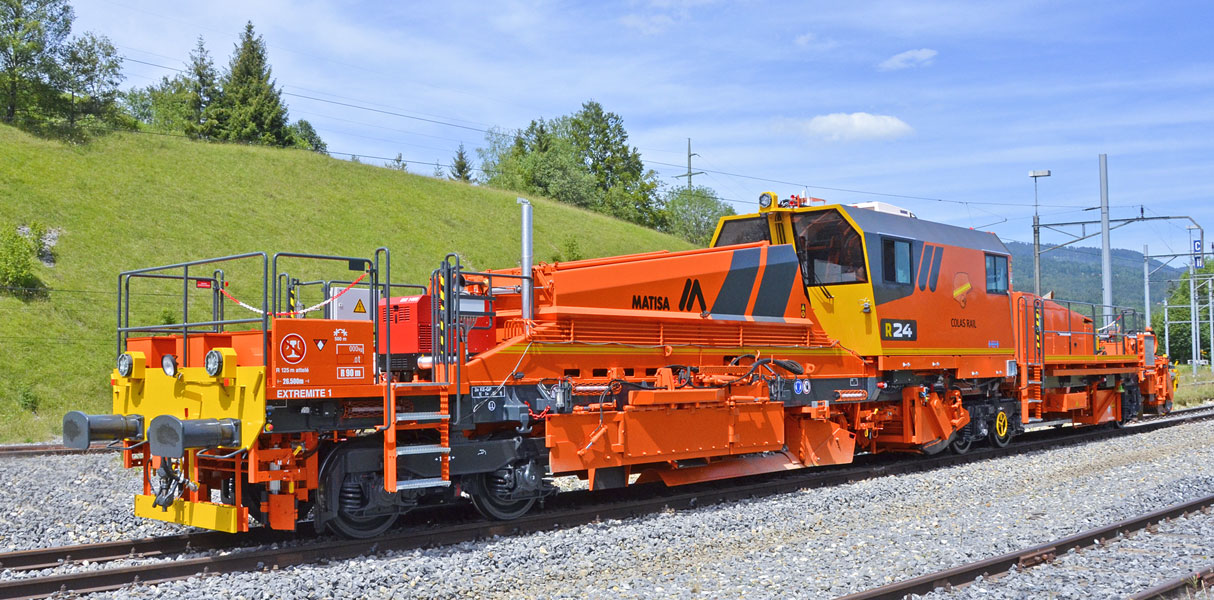

BALLAST REGULATORS R 24 Simply the best

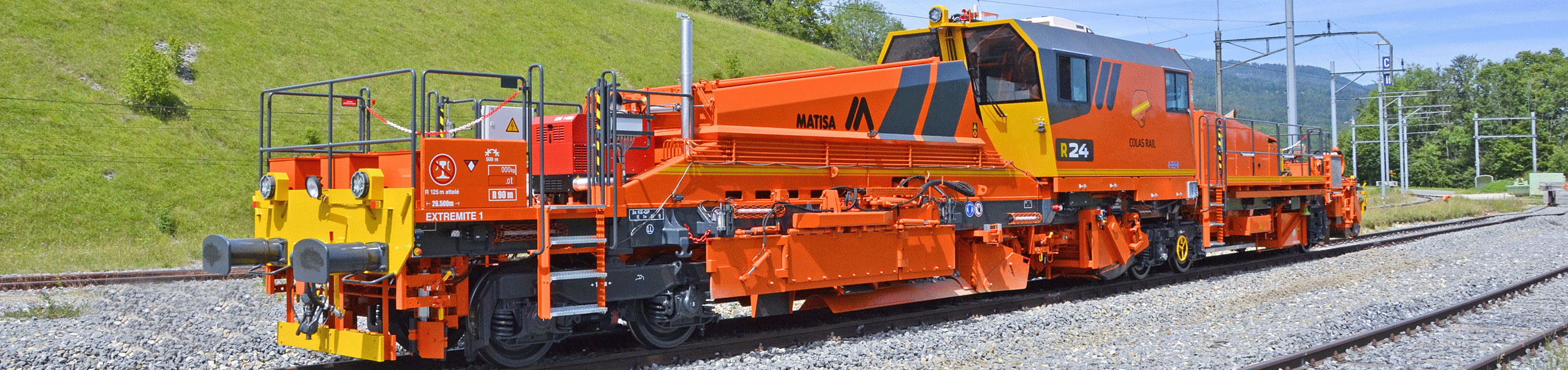

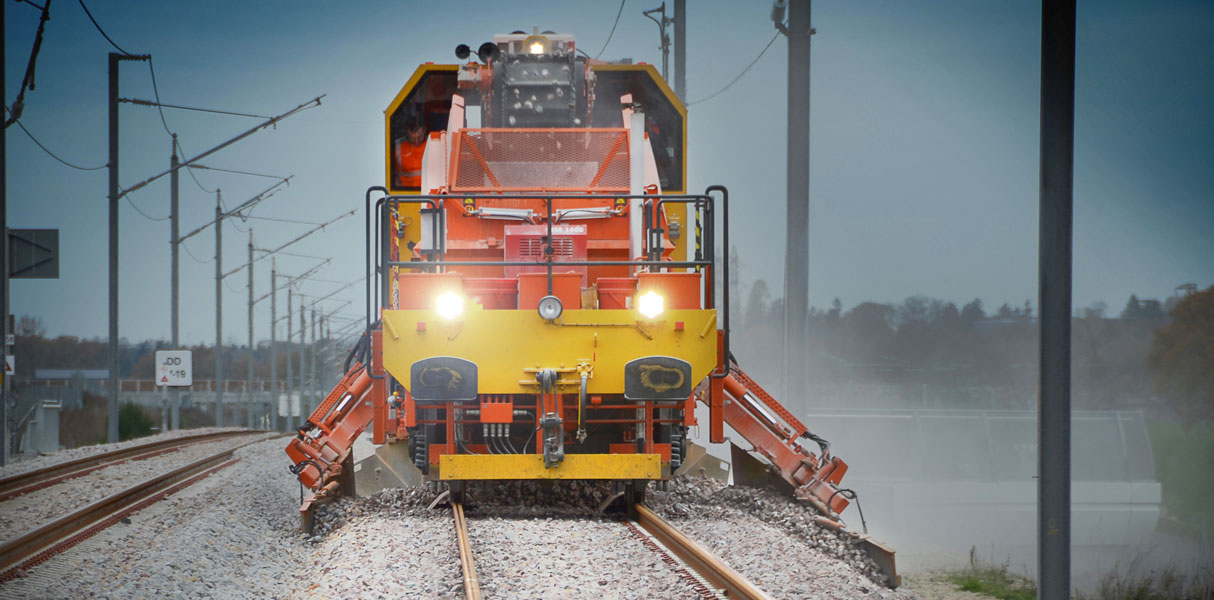

The R 24 is a high-output ballast regulator on bogies, especially designed for the construction and maintenance of high speed lines. It is equipped with a 10m3 hopper, expandable to 13m3 which allows the excess ballast recovery and redistribution to the areas with low ballast density. More powerful, it also offers more comfort as well as a more spacious and customizable cabin. This ballast regulator offers excellent modularity and will satisfy your most demanding needs.

HYDROSTATIC TRANSMISSION, A UNIQUE COMFORT

Machines equipped with hydrostatic transmission are very pleasant use. This technology offers the possibility to adjust the speed continuously, smoothly and without slipping when starting. All to enable more fluidity and a real gain of comfort in the daily use. One of the advantages of hydrostatic transmission is the absence of slipping at wheel level

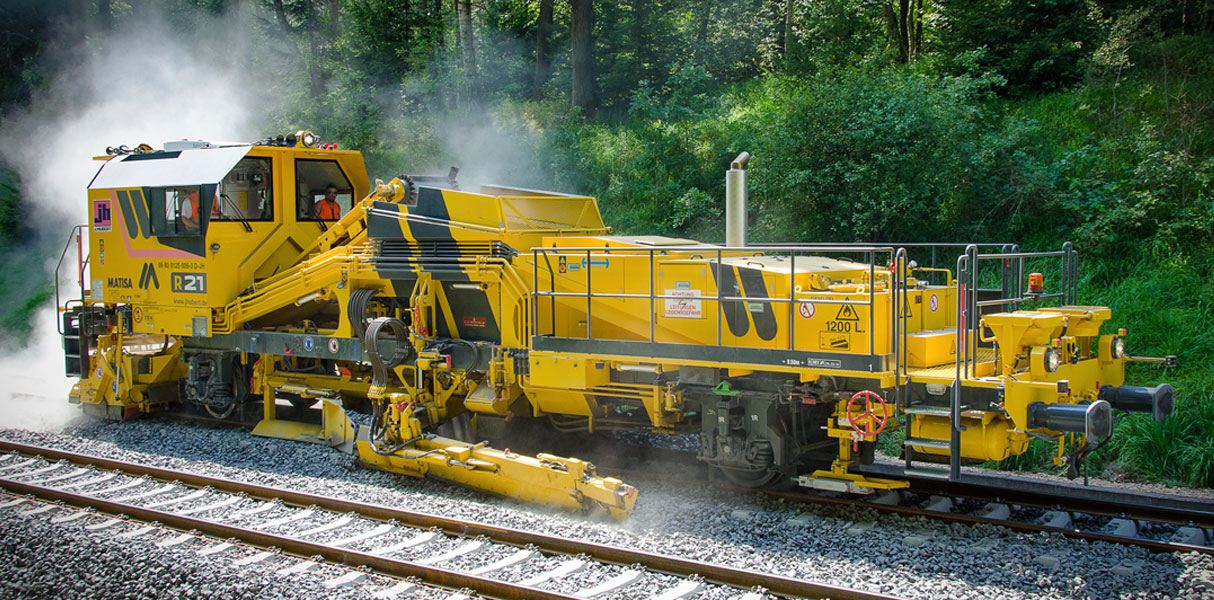

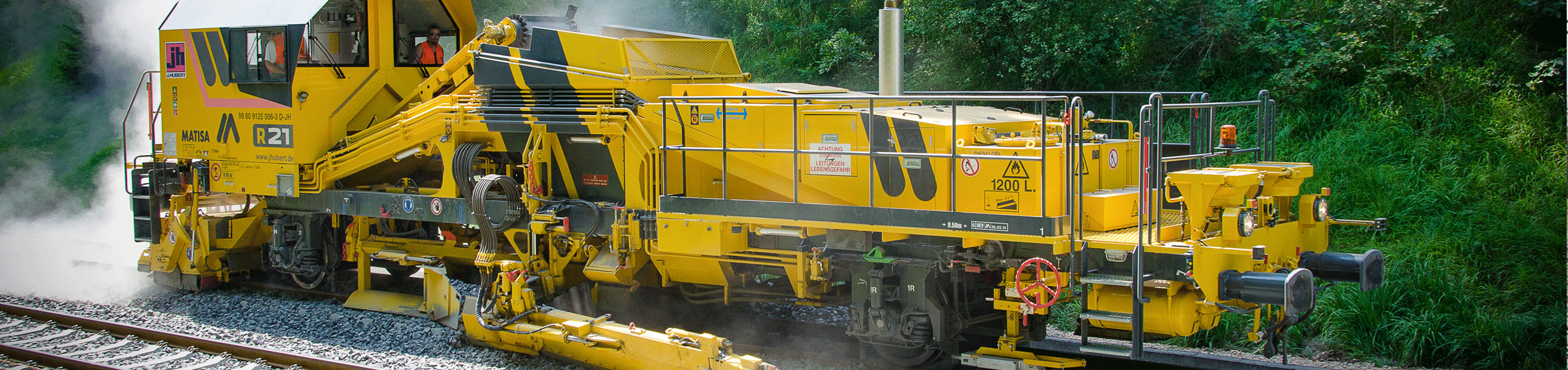

BALLAST REGULATORS R 21 VERSATILITY, HIGH-OUTPUT & SIMPLICITY

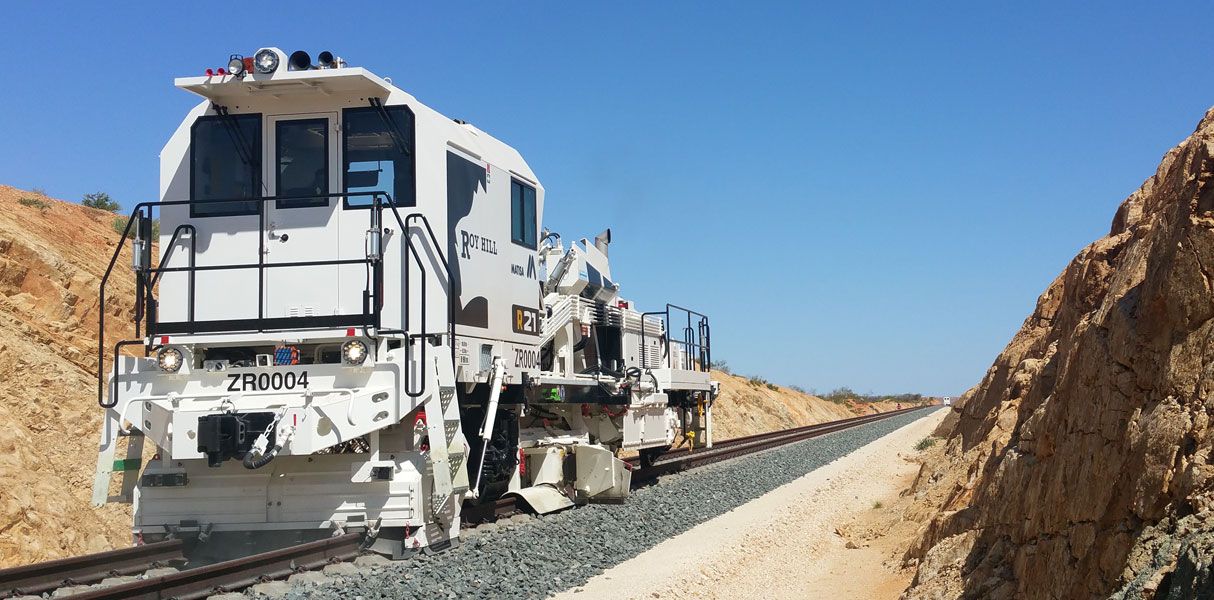

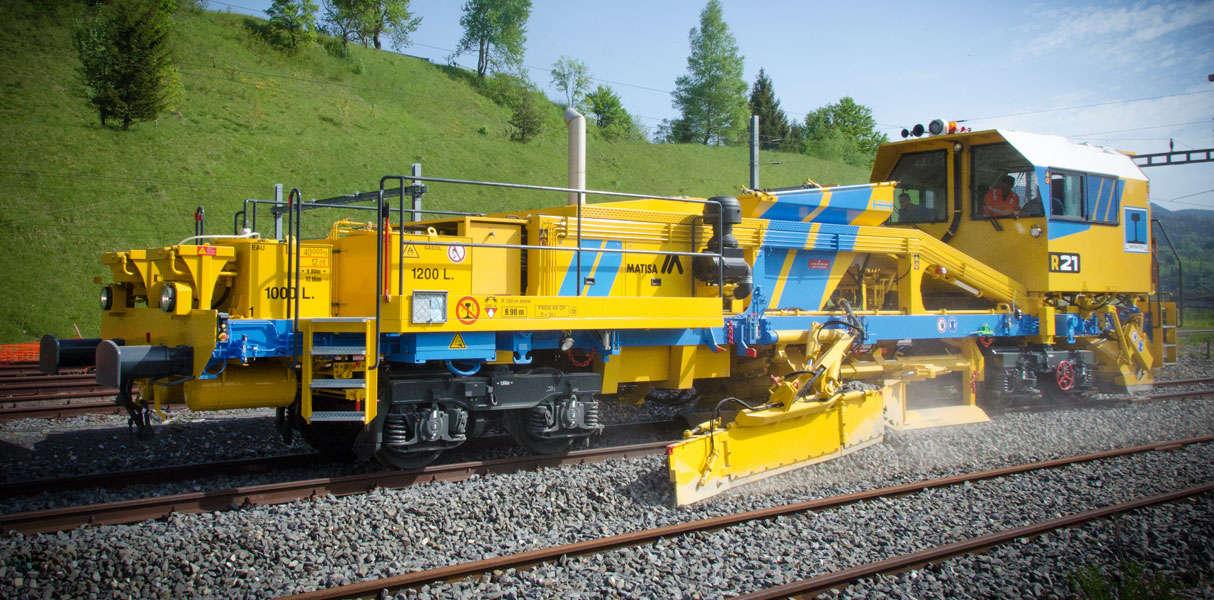

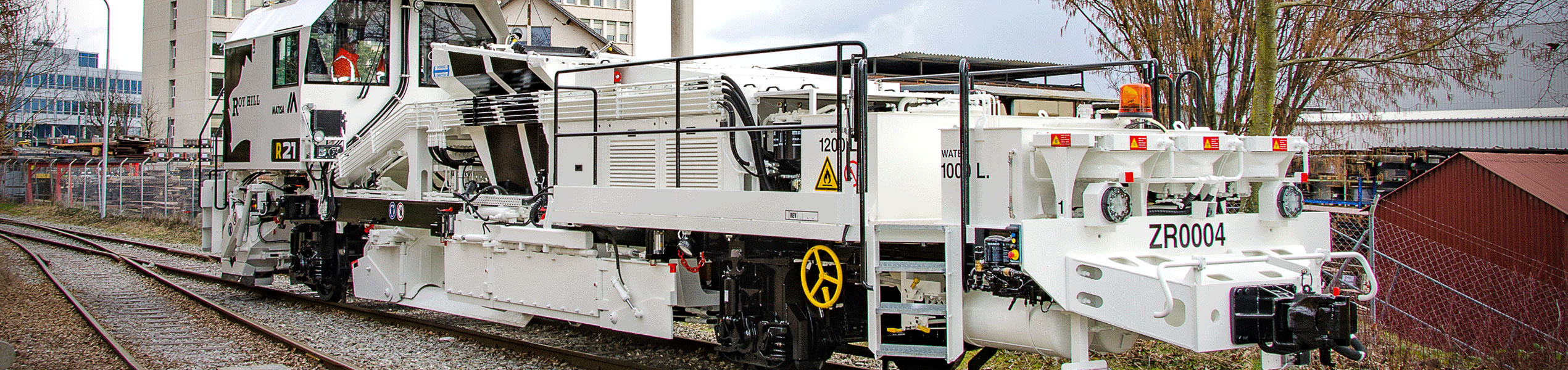

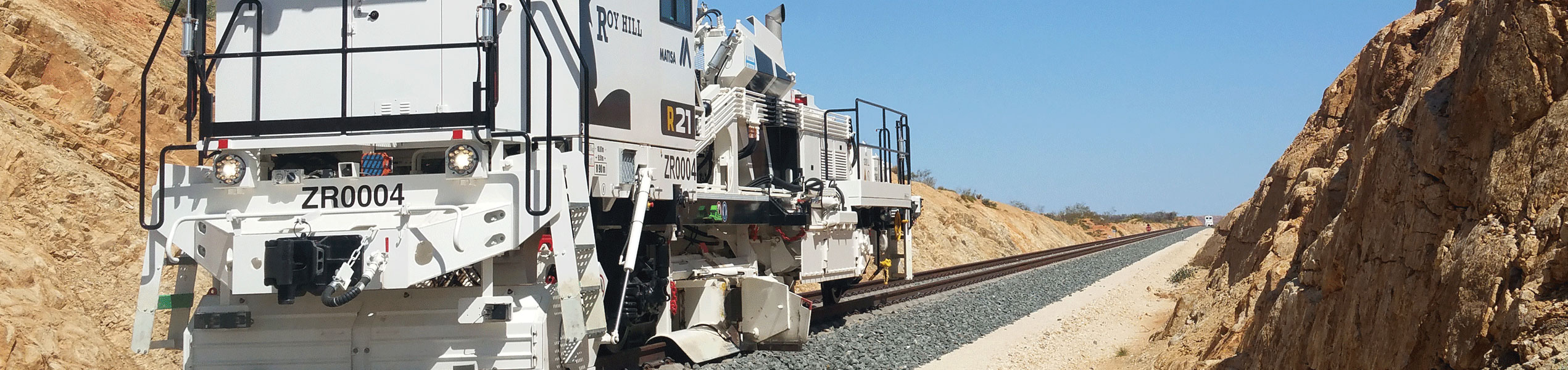

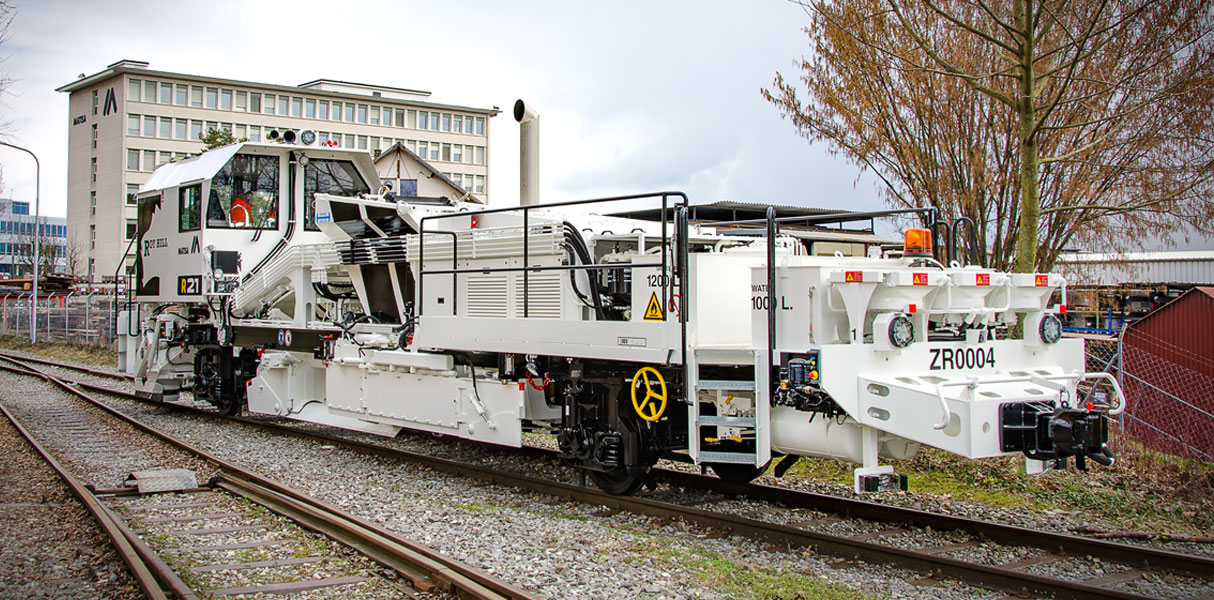

The R 21 is a high-output ballast regulator which can be used on both plain lines and switches work sites. Its large cabin generously dimensioned and with ergonomic design offers an excellent view on the working tools. Thanks to the arrangement of these tools designed to see the flow of ballast from the work stations, it is possible to directly correct the surplus or lack of ballast.This exceptional result is obtained in only one single pass.

EASY TO OPERATE AND BIDIRECTIONAL

The ballast ploughs have been developed to enable the design of any profile type.
The R 21 can operate in both directions, thanks to the central pivot center and the symmetry of the lateral blades. The number of passes during the same shift is thus optimized.

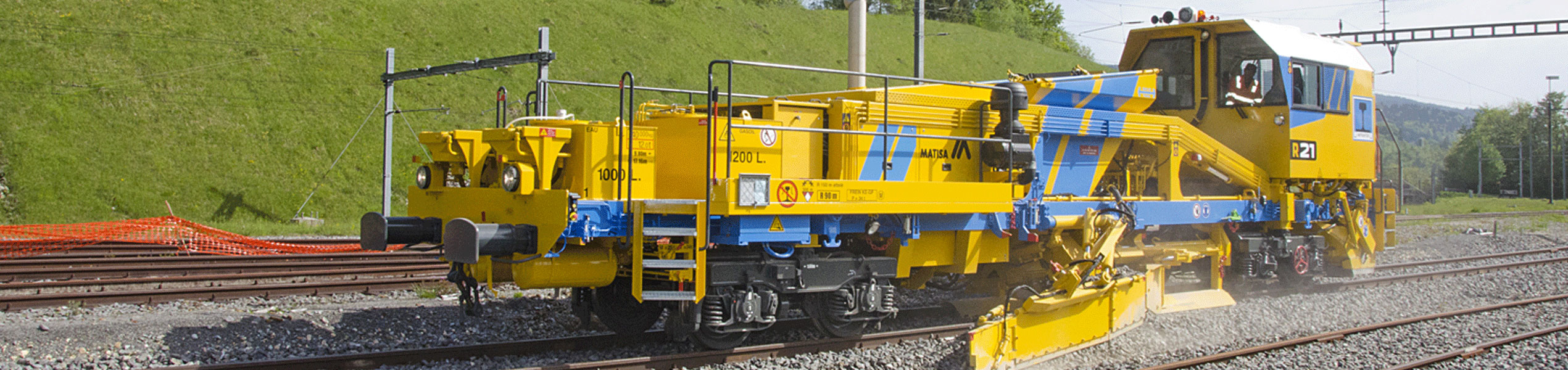

BALLAST REGULATORS R 21 ON BOGIES INGENIOUS & VERSATILE, EVEN MORE OPTIONS

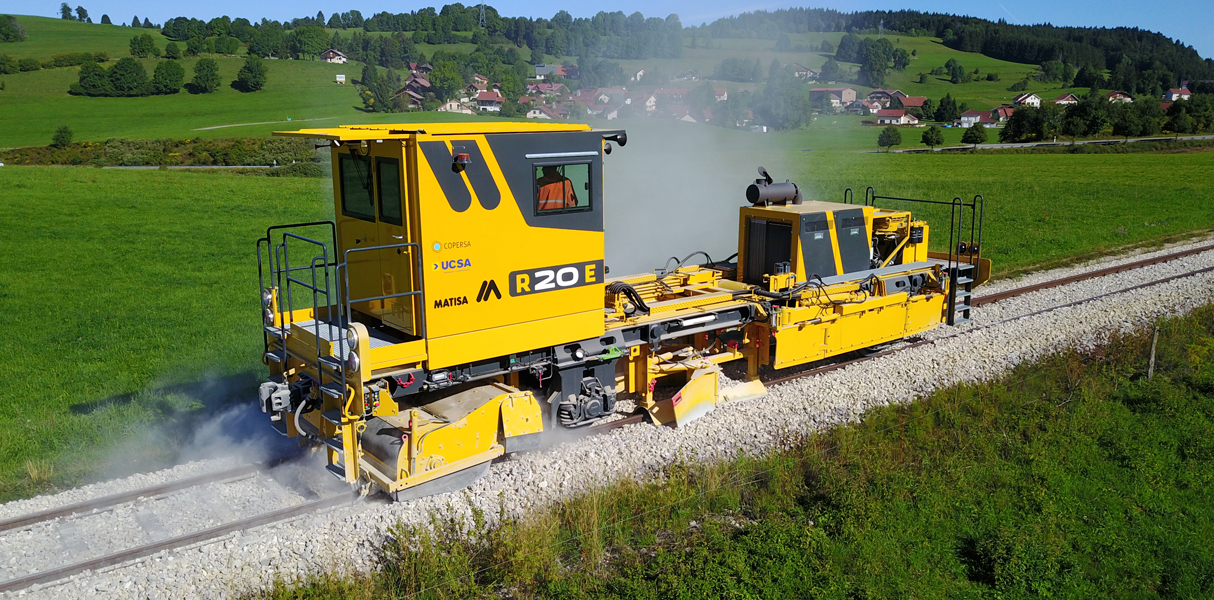

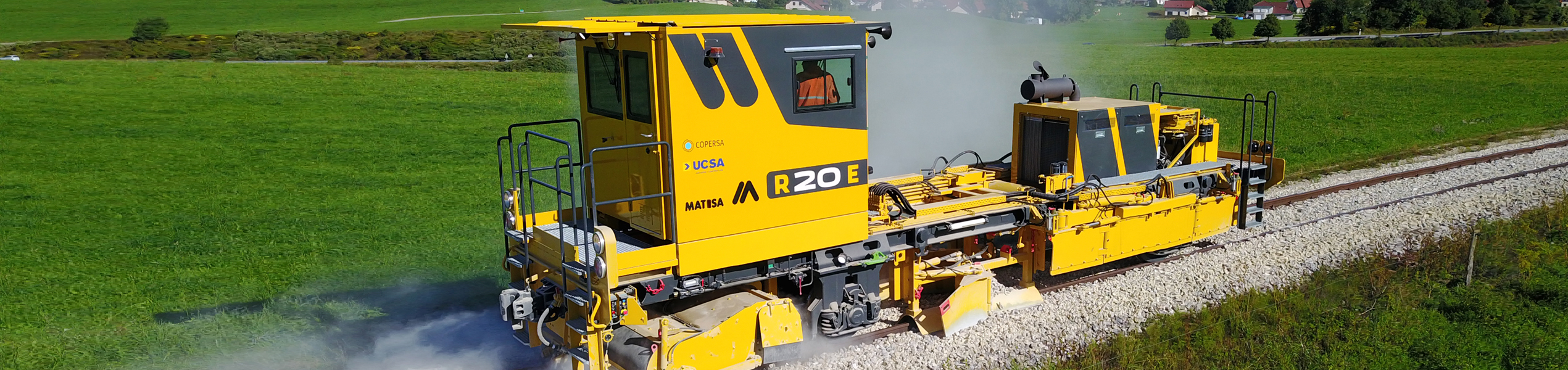

BALLAST REGULATORS R 20/R 20 E SAVINGS WITH FULL RELIABILITY

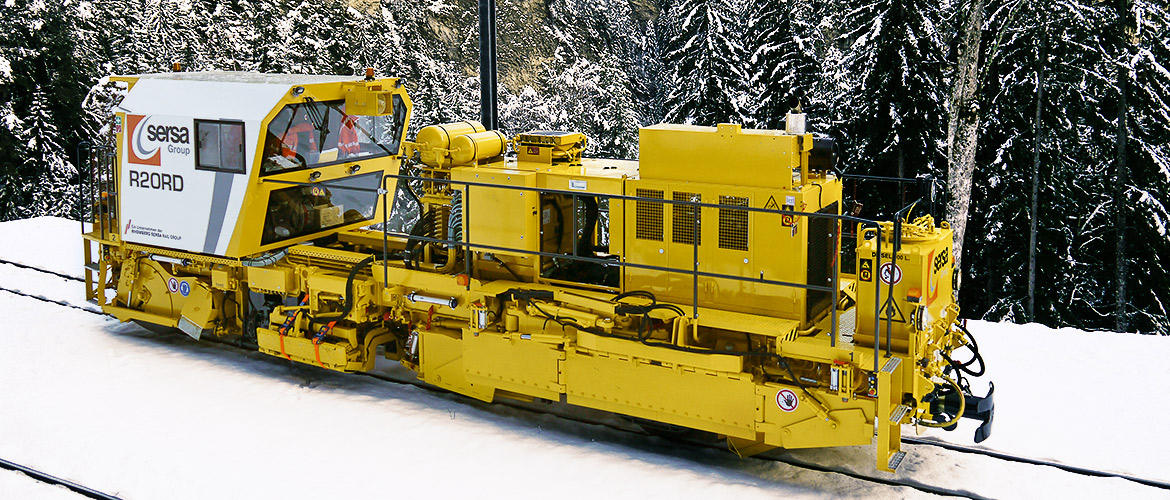

The R 20 / 20 E are high-performance, compact and economic ballast regulators with high efficiency, designed for plain line work. These machines are particularly suitable for narrow gauge networks or for networks with limited axle load, but are also comfortable on the standard gauge networks. Their independent running mode speed is 80 km/h.

While maintaining the same quality of work as its big sisters, these ballast regulators are built with a compact and simplified design. The R 20/ R 20 E demonstrate excellent reliability among its users. They can be equipped with a road trailer loading system, which makes it possible to raise the machine and move it laterally. Thanks to this system, it is also possible to park the machines at the side of the track after they have been used, which reduces transport costs. The R 20 ballast regulators are equipped with cameras at each end of the machine and with two displays in the cabin. During operating, they allow the operator to ensure that no one is on the track. The ballast regulators R 20 E are dedicated for the non EC market. t.

OPTIONAL EQUIPMENT

The R 20 can be equipped with a 5m3 hopper to recover the excess of ballast on the sleepers. 4 independent distribution flaps under the hopper discharge the ballast precisely and spread it again in the same pass.
